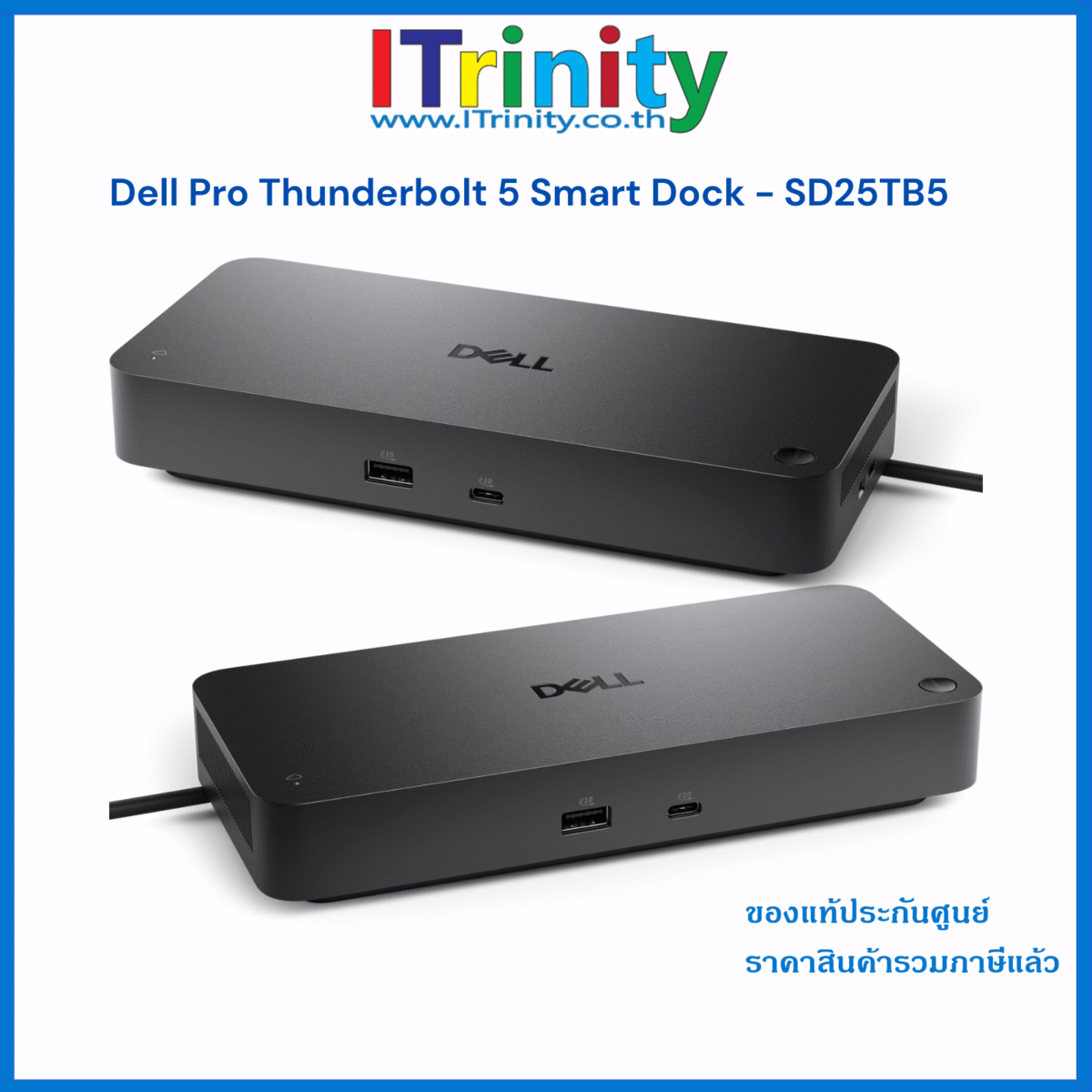

Dell Pro Thunderbolt 5 Smart Dock – SD25TB5

Connectivity Technology : Wired (Thunderbolt 5)
Number of Displays Supported : 4
Host PC Management :
WLAN to LAN Switch
Port Disablement
Dell Command Update (DCU)
Intel AMT over Thunderbolt with select Intel vPro PCs
MAC Address Pass-through
Kernel Direct Memory Access (DMA) Protection
PXE Boot
Wake-on-LAN
Dock Power Button Sync
Video Resolution DP1.4 / DP2.1 with Display Stream Compression Up to:
4K – 120 Hz (Triple Display)
QHD – 60 Hz (Quad Display)
4K – 120 Hz (Quad Display)
WQHD – 60 Hz (Triple Display)
4K – 60 Hz (Dual Display)
5K – 60 Hz (Single Display)
4K – 60 Hz (Quad Display)
4K – 60 Hz (Triple Display)
8K – 60 Hz (Single Display)
6K – 60 Hz (Dual Display)
Maximum Data Transfer Rate – 1.25 GB/s
Network & Communication : RJ45 Ethernet port, 2.5GbE

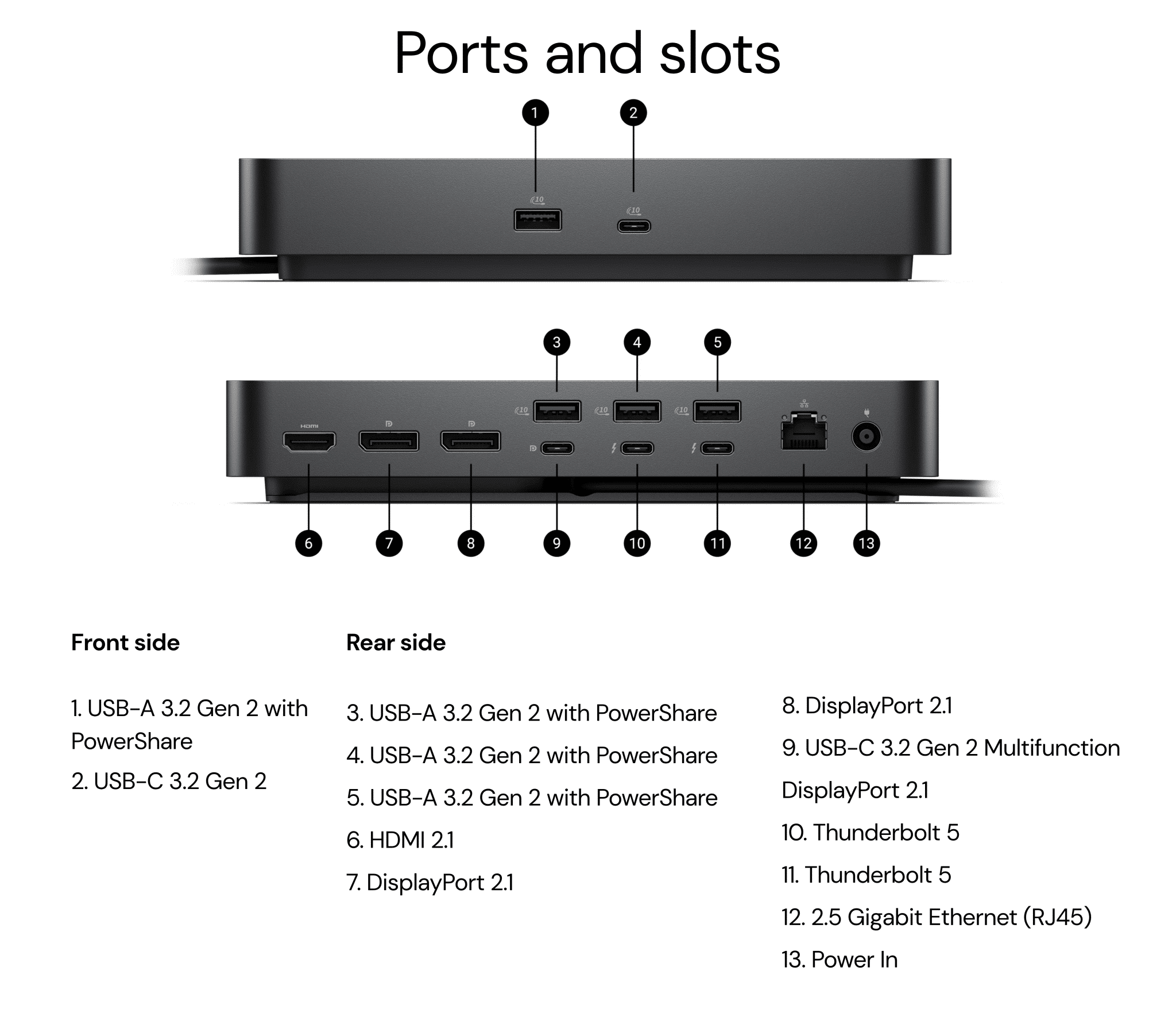

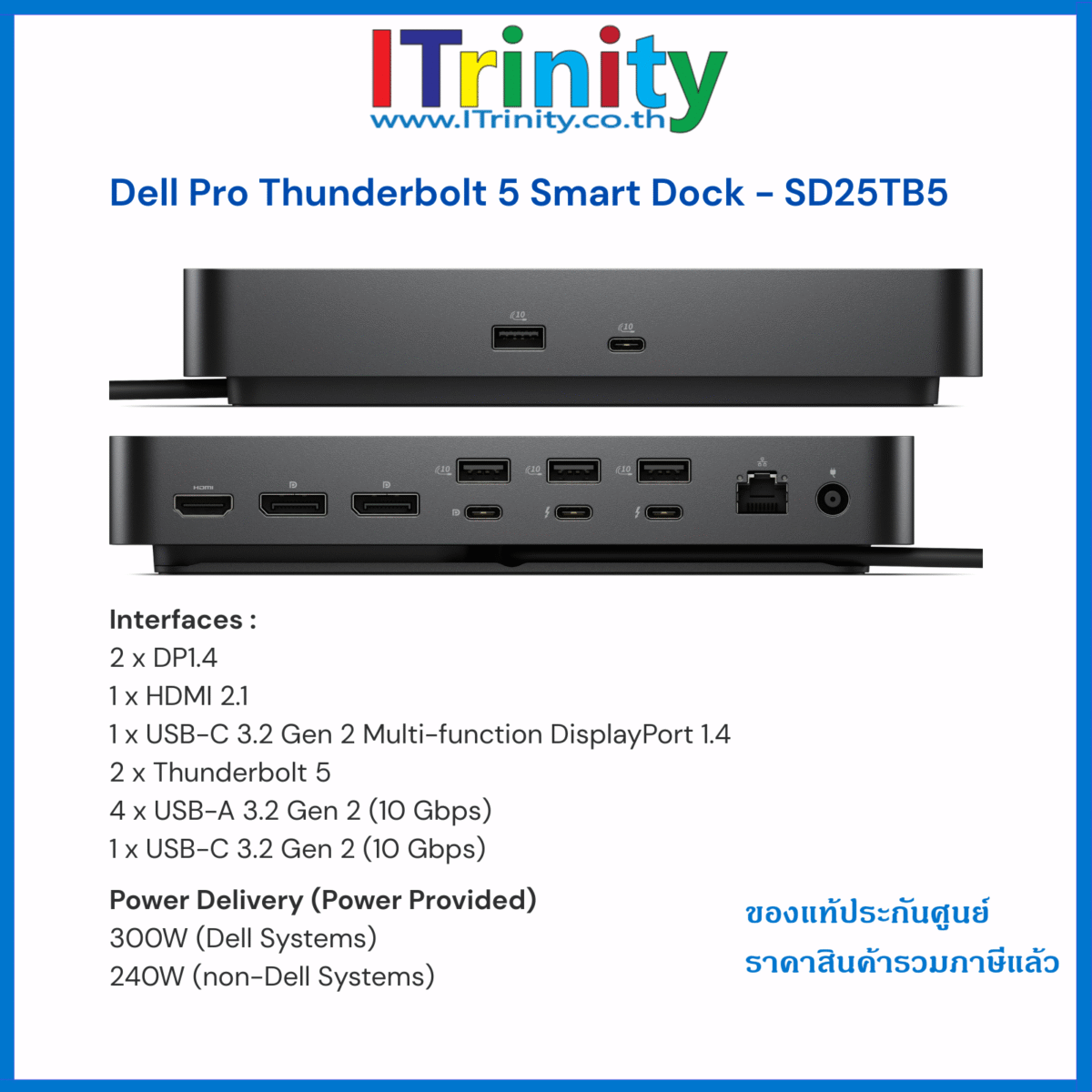

Interfaces/Ports –
2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
2 x Thunderbolt 5
4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)
Power Delivery (Power Provided) : 330W (Dell systems) , 240W (non-Dell systems)Software
Operating System Supported : Windows 10, Windows 11, Ubuntu, Red Hat Enterprise Linux, ChromeOS
Maximum Power Supply Wattage : 330W
Dimensions : Height – 8.07″ x Width – 3.54″ x Depth – 1.39″
Weight (Approximate) : 1.39 lbs
Kensington Security Slot : Yes
3-Year Limited Hardware Warranty with Advanced Exchange.
