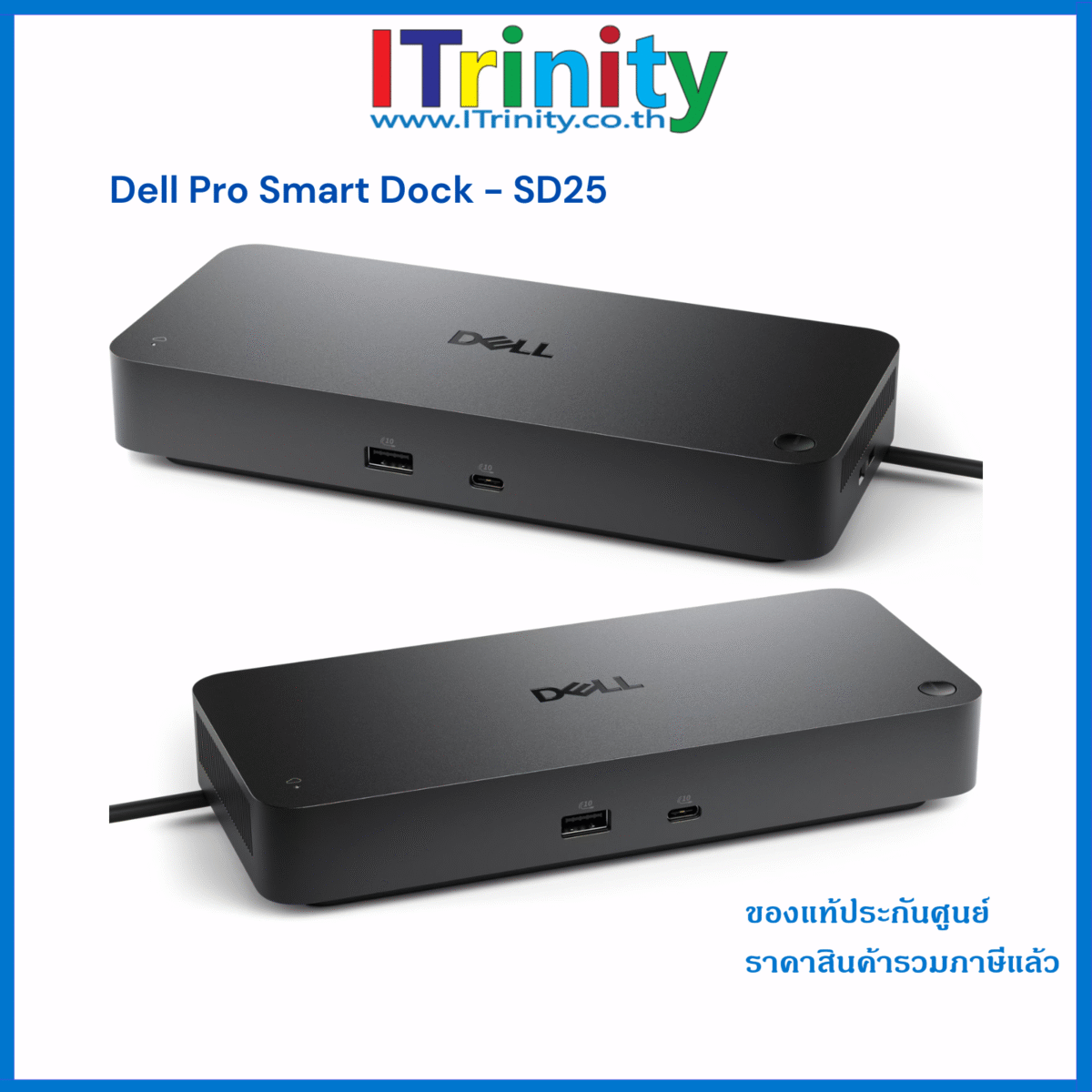

Dell Pro Smart Dock – SD25

Connectivity Technology : Wired
Number of Displays Supported : 4
Host PC Management :
MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection
Dock Management Features
Remote firmware updates without a PC
Host PC based firmware updates
Firmware update on disconnect
Port Disablement independent of PC
Video Resolution
4 x WQHD (3440 x 1440) @ 60Hz
3 x WQHD (3440 x 1440) @ 60Hz
2 x 5K (5120 x 2160) @ 60Hz
1 x 6K (6144 x 3456) @ 60Hz
Network & Communication : RJ45 Ethernet port, 2.5GbE

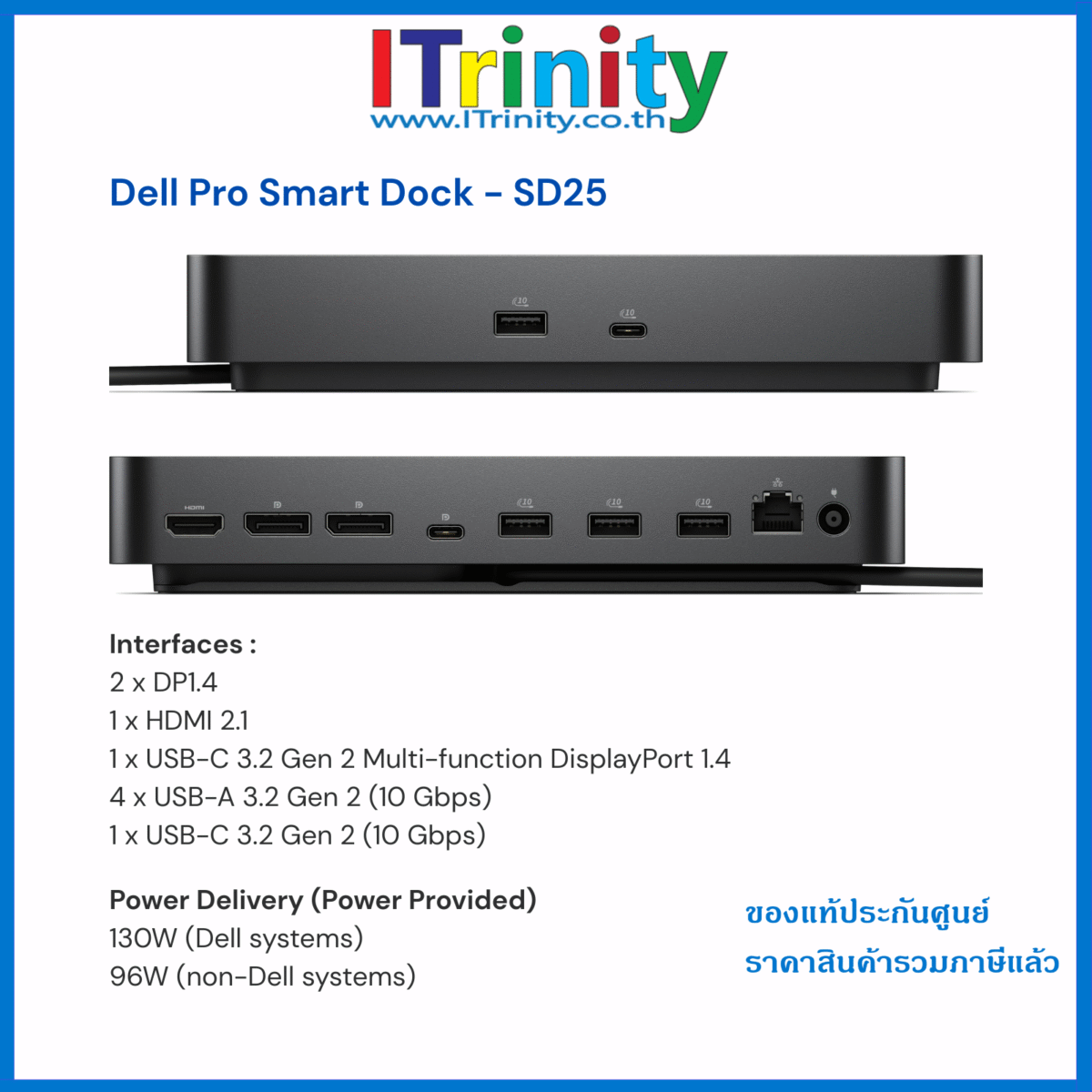

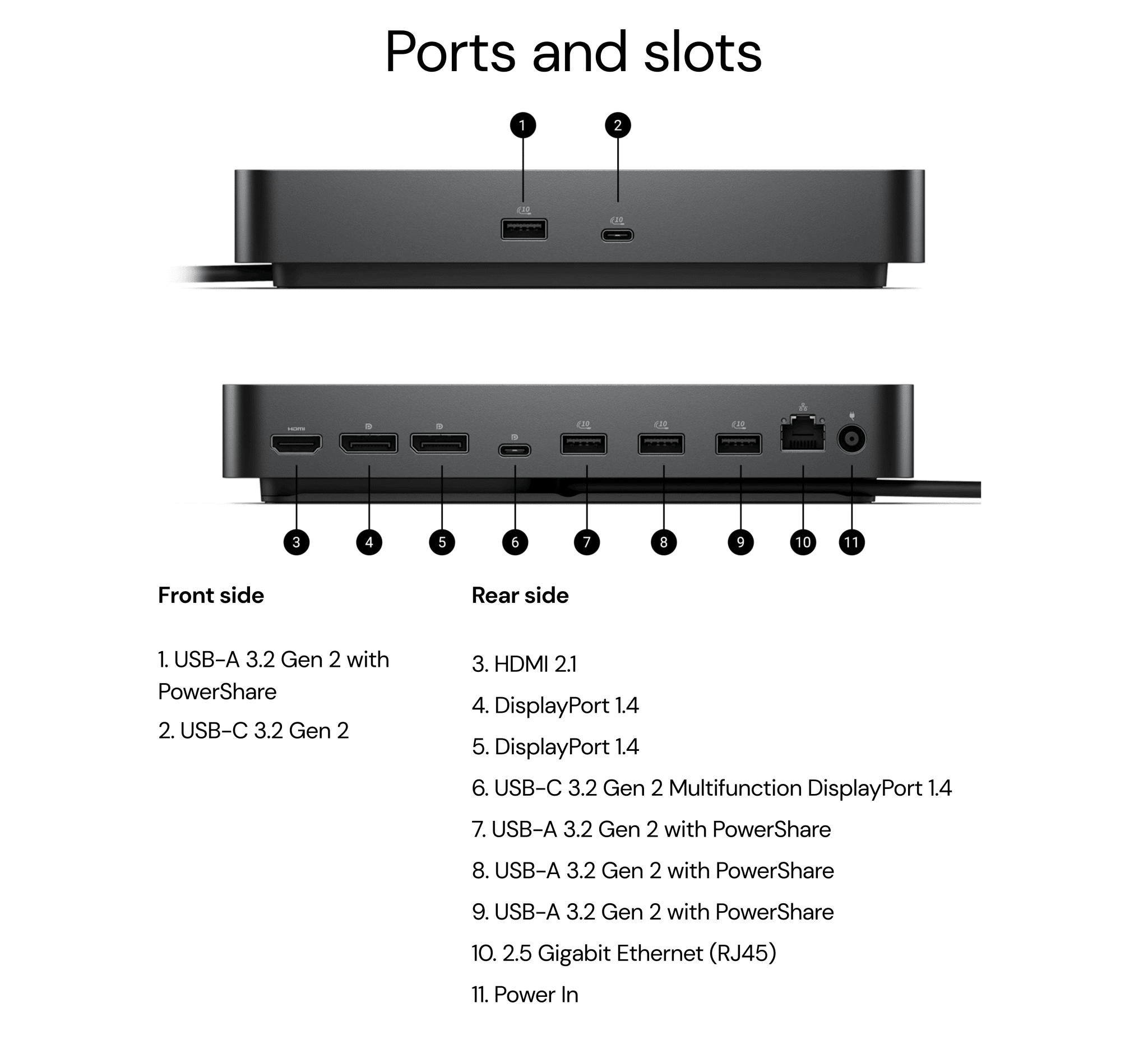

Interfaces/Ports
2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)
Power Delivery (Power Provided) : 130W (Dell systems) , 96W (non-Dell systems)Software
Operating System Supported : Windows 10, Windows 11, Ubuntu, Red Hat Enterprise Linux, ChromeOS
Maximum Power Supply Wattage : 180W
Dimensions : Height – 205mm x Width – (3.54in) 90mm x Depth – 35.25mm
Weight (Approximate) : 562 g
Kensington Security Slot : Yes
3-Year Limited Hardware Warranty with Advanced Exchange.
